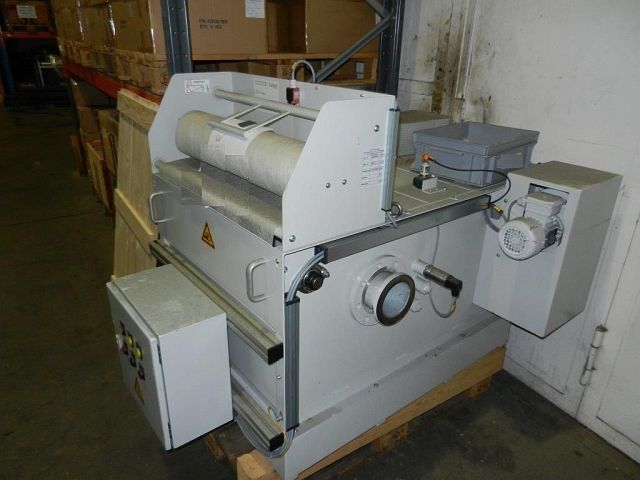

LIQUI MTBF-V750
Categories
Filter Apparatus
Object
40050
Brand
LIQUI
Model
MTBF-V750
YOM
2013
Object
40050
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1300 | mm |
| space requirements -front/back-: | 1120 | mm |
| total height: | 920 | mm |
| Application: The system consists of a steel housing with filter bottom. As filter bottom slotted screen or perforated plate is used, which at the same time carrier of the filter belt is. The transport the filter belt is made by a pull-out device. -> max. Power throughput 750 L / min Filter efficiency: Parameters for the filtration are the viscosity of the filter medium and the quality of the filter belt.Cleaning levels up to 99% with a limit grain size of 10 microns can be achieved. Your advantages: - Longer service life of the tools due to thorough preparation of the cooling lubricant. - Saving of disposal costs by chip and sludge pre-drying. - High throughput in a small footprint. - Optimum utilization of the filter aid. - High purity by choice of filter aid center and construction of a sludge cake. |
