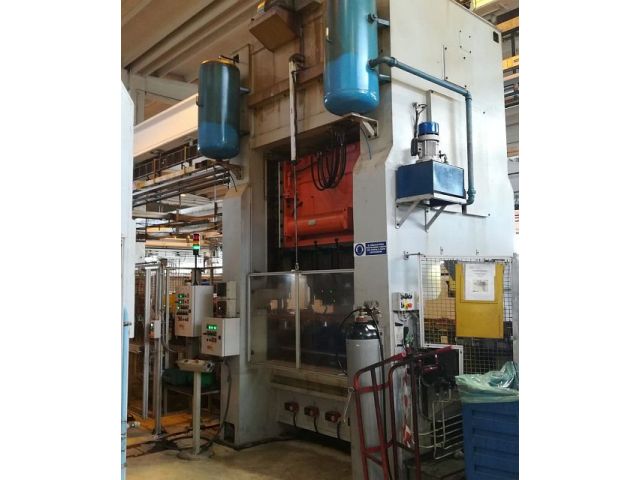

MANZONI 2MR 160
Categories
Progressive Die Press -mechanical-
Object
42068
Brand
MANZONI
Model
2MR 160
YOM
1991
Object
42068
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| openings in uprights: yes | ||
| number of slide actions: | 1 | |
| Press forces | ||
|---|---|---|
| total force (nominal): | 160 | to |
| nominal work capacity: | 20 | kNm |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1600 | mm |
| table surface (front-back): | 1100 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 1400 | mm |
| table surface (front-back): | 1100 | mm |
| stroke: | 400 | mm |
| stroke rate (max.): | 35 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| main drive power: | 15 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 900 | mm |
| distance between columns (H-frame): | 1600 | mm |
| passline opening (free passage in side columns): | 1320 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2400 | mm |
| space requirements -front/back-: | 2400 | mm |
| total height: | 5150 | mm |
| total weight approx.: | 18800 | kg |
