PLATARG 312
Categories
Transfer Press -mechanical-
Object
40442
Brand
PLATARG
Model
312
YOM
0
Object
40442
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| number of slide actions: | 12 | |
| Press forces | ||
|---|---|---|
| total force (nominal): | 36 | to |
| Slide | ||
|---|---|---|
| slide force: | 3 | to |
| stroke: | 38 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| variable speed: yes | ||
| main drive power: | 4 | kW |
| Overall Specifications (coil lines) | ||
|---|---|---|
| sheet width max: | 50 | mm |
| feedstock transport direction: front-back | ||
| Strip-Feeder | ||
|---|---|---|
| feeder type: roll feeder | ||
| sheet width max: | 50 | mm |
| pilot release system: no | ||
| band lubrication system: optional | ||
| Transfer System | ||
|---|---|---|
| number of tool stations: | 13 | |
| distance between tools, stroke X fixed: | 63.5 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2400 | mm |
| space requirements -front/back-: | 1500 | mm |
| total height: | 1930 | mm |
| total weight approx.: | 3500 | kg |
| Attachments (presses) | ||
|---|---|---|
| safety guard / safety door: yes | ||
| acc. to actual accident protection regulation: yes | ||
| European CE standards: optional | ||

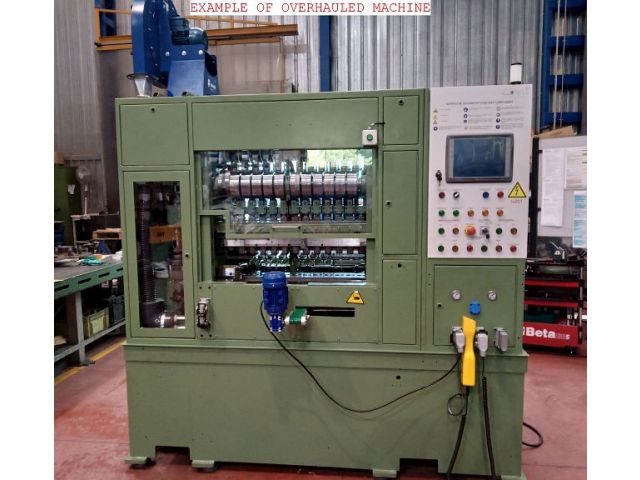

| Specifications: Number of stations: 13 (12+1) Capacity per ram: 3 tons Flat plate lifters Standard stroke: 2" (51 mm) Maximum speed: 140-150 spm Example of an overhauled Platarg 312 which can be applied to a machine of the same model which is currently available in our database and includes the supply of this machine. Most specifications can be modified / upgraded according to customer's requirements. |
