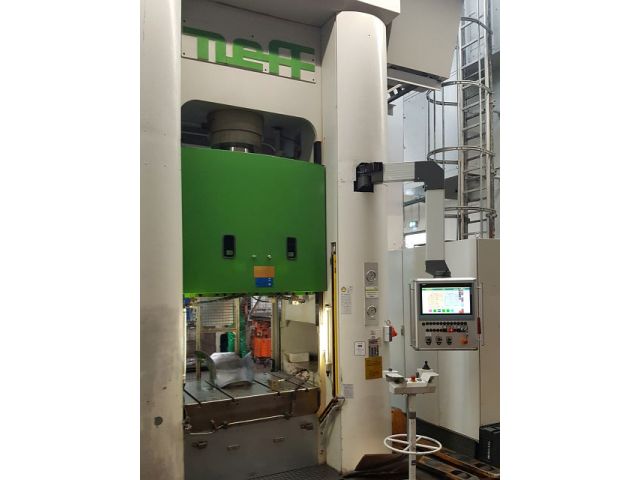

NEFF DZP 250
Categories
Press -hydraulical-
Object
42715
Brand
NEFF
Model
DZP 250
YOM
2006
Control name
SIEMENS SIMATIC
Object
42715
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| frame design: H-frame, monoblock | ||
| number of suspensions: | 1 | |
| table cushion: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 250 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1300 | mm |
| table surface (front-back): | 1000 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 1300 | mm |
| table surface (front-back): | 1050 | mm |
| stroke: | 680 | mm |
| slide (hydr. Press) | ||
|---|---|---|
| working velocity max.: | 75 | mm/s |
| slide ejector / cushion | ||
|---|---|---|
| working principle: hydraulical | ||
| Die Cushion (table cushion) | ||
|---|---|---|
| cushion force: | 160 | to |
| stroke: | 250 | mm |
| cushion plate surface (left-right): | 680 | mm |
| cushion plate surface (front-back): | 960 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| distance table - slide max.: | 1200 | mm |
| distance between columns (H-frame): | 1330 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 90 | kW |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 30000 | kg |
