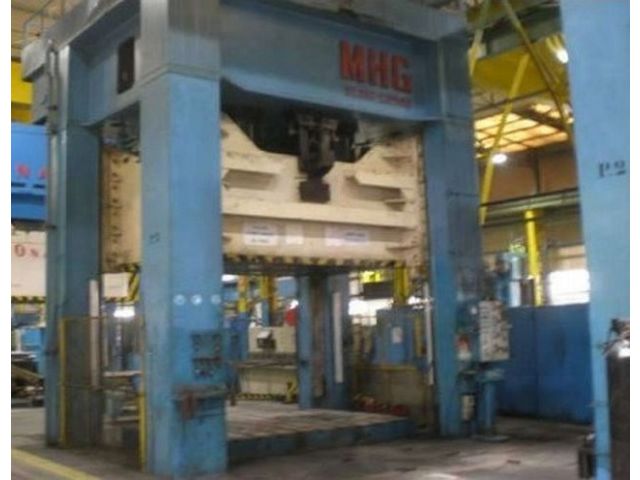

MHG LE.20.DM-1200/3200
Categories
Press -hydraulical-
Object
42101
Brand
MHG
Model
LE.20.DM-1200/3200
YOM
1981
Object
42101
| Press Design | ||
|---|---|---|
| openings in uprights: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 1200 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 3200 | mm |
| table surface (front-back): | 2000 | mm |
| Slide | ||
|---|---|---|
| stroke: | 1750 | mm |
| slide (hydr. Press) | ||
|---|---|---|
| approximation velocity max.: | 200 | mm/s |
| working velocity max.: | 25 | mm/s |
| return velocity max.: | 235 | mm/s |
| slide ejector / cushion | ||
|---|---|---|
| nominal force: | 150 | to |
| Die Cushion (table cushion) | ||
|---|---|---|
| cushion force: | 480 | to |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 2250 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 175 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| can be inspected in operation |
