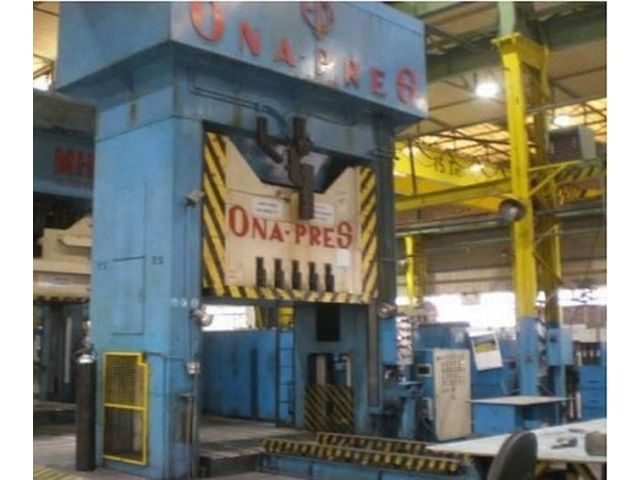

ONA PRES EFBD 80-2.75F
Categories
Press -hydraulical-
Object
42098
Brand
ONA PRES
Model
EFBD 80-2.75F
YOM
1976
Object
42098
| Press Design | ||
|---|---|---|
| frame design: H-frame, tie rod | ||
| openings in uprights: yes | ||
| number of suspensions: | 2 | |
| slide ejectors / cushion: yes | ||
| quick die change system: yes | ||
| moving bolster design: front-back | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 800 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 2750 | mm |
| table surface (front-back): | 1600 | mm |
| Slide | ||
|---|---|---|
| stroke: | 1600 | mm |
| slide (hydr. Press) | ||
|---|---|---|
| return force: | 80 | to |
| slide ejector / cushion | ||
|---|---|---|
| nominal force: | 320 | to |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 2250 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 88 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| can be inspected in function Documentation available |
