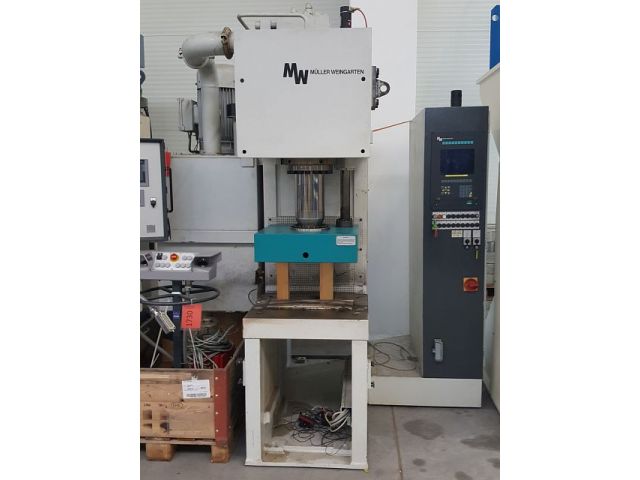

MÜLLER WEINGARTEN CK 63.2.11
Categories
Press -hydraulical-
Object
40408
Brand
MÜLLER WEINGARTEN
Model
CK 63.2.11
YOM
1995
Control name
MÜLLER WEINGARTEN
Object
40408
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| frame design: C-frame, single sided | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 63 | to |
| Press Table | ||
|---|---|---|
| opening in bed (left-right): | 680 | mm |
| opening in bed (front-back): | 620 | mm |
| Slide | ||
|---|---|---|
| slide force: | 63 | to |
| table surface (left-right): | 560 | mm |
| table surface (front-back): | 500 | mm |
| stroke: | 300 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| distance table - slide max.: | 500 | mm |
| throat (C-frame): | 320 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2300 | mm |
| space requirements -front/back-: | 1800 | mm |
| total height: | 2700 | mm |
| total weight approx.: | 5000 | kg |
