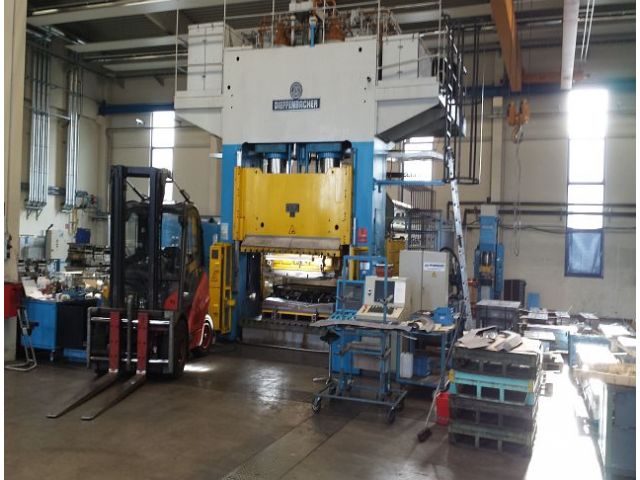

DIEFFENBACHER PHP 1000
Categories
Press -hydraulical-
Object
39519
Brand
DIEFFENBACHER
Model
PHP 1000
YOM
1987
Object
39519
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| openings in uprights: no | ||
| number of suspensions: | 2 | |
| number of slide actions: | 1 | |
| slide ejectors / cushion: no | ||
| table cushion: yes | ||
| opening in table: no | ||
| quick die change system: no | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 1000 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 2500 | mm |
| table surface (front-back): | 1500 | mm |
| thickness of bolster plate: | 140 | mm |
| height above floor level: | 300 | mm |
| Slide | ||
|---|---|---|
| stroke: | 1250 | mm |
| slide (hydr. Press) | ||
|---|---|---|
| approximation velocity max.: | 300 | mm/s |
| working velocity min.: | 0.5 | mm/s |
| working velocity max.: | 21 | mm/s |
| return velocity max.: | 170 | mm/s |
| Die Cushion (table cushion) | ||
|---|---|---|
| number of cushions: | 5 | |
| cushion force: | 150 | to |
| stroke: | 250 | mm |
| working principle: hydraulical | ||
| Tool Assembly Dimensions | ||
|---|---|---|
| distance table - slide max.: | 1530 | mm |
| distance between columns (H-frame): | 2775 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 7360 | mm |
| space requirements -front/back-: | 4500 | mm |
| total height: | 8583 | mm |
| height above floor level: | 6763 | mm |
| height under floor level: | 1820 | mm |
| total weight approx.: | 81600 | kg |
| Attachments (presses) | ||
|---|---|---|
| light barrier: yes | ||
| Hydraulic Press for Fiber-Reinforced Thermoplastics and Duroplastics |
