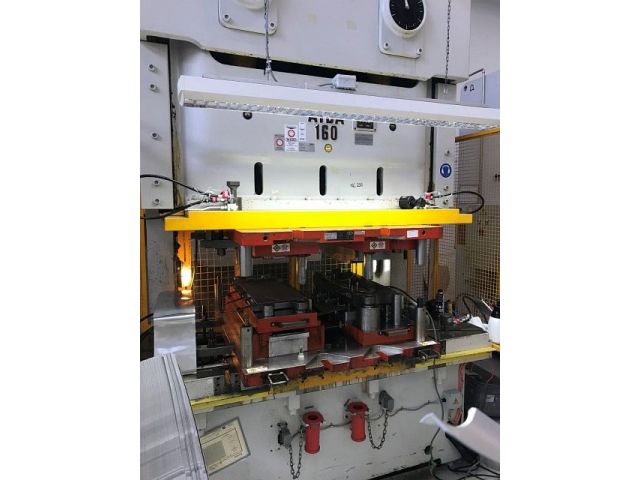

AIDA NC2-160-2
Categories
Power Press (C-frame)
Object
42654
Brand
AIDA
Model
NC2-160-2
YOM
2000
Object
42654
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: C-frame, double sided | ||
| number of suspensions: | 2 | |
| quick die change system: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 160 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 2040 | mm |
| table surface (front-back): | 840 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 1700 | mm |
| table surface (front-back): | 800 | mm |
| stroke: | 230 | mm |
| stroke rate (max.): | 55 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 70 | mm |
| stroke adjustment: no | ||
| variable speed: yes | ||
| stroke rate (min.): | 30 | /min |
| stroke rate (max.): | 55 | /min |
| main drive power: | 15 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 450 | mm |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 20000 | kg |
| Attachments (presses) | ||
|---|---|---|
| light barrier: yes | ||
| European CE standards: yes | ||
| 3 identical presses available for sale - 1 in Austria and 2 in Poland. Can be inspected under running conditions without tooling |
