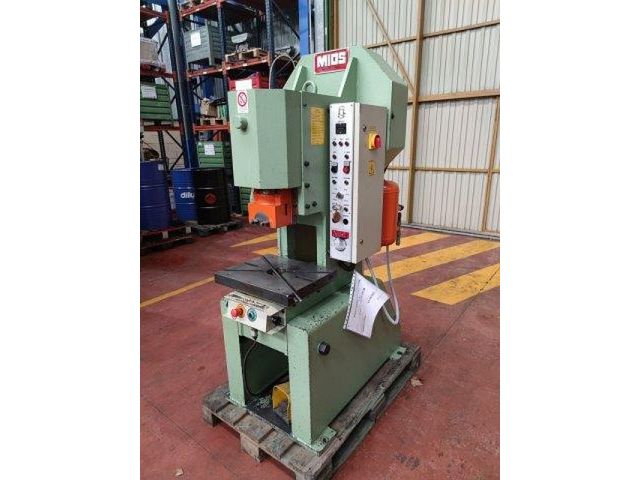

MIOS T20
Categories
Power Press (C-frame)
Object
42359
Brand
MIOS
Model
T20
YOM
2000
Object
42359
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 20 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 550 | mm |
| table surface (front-back): | 360 | mm |
| thickness of bolster plate: | 50 | mm |
| height above floor level: | 800 | mm |
| opening in bed (diameter): | 110 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 125 | mm |
| table surface (front-back): | 100 | mm |
| spigot hole diameter: | 30 | mm |
| stroke: | 60 | mm |
| stroke rate (max.): | 155 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 40 | mm |
| stroke adjustment: yes | ||
| stroke min.: | 5 | mm |
| stroke max.: | 60 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 280 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1100 | mm |
| space requirements -front/back-: | 1350 | mm |
| total height: | 1900 | mm |
| total weight approx.: | 1250 | kg |
| Attachments (presses) | ||
|---|---|---|
| European CE standards: yes | ||
