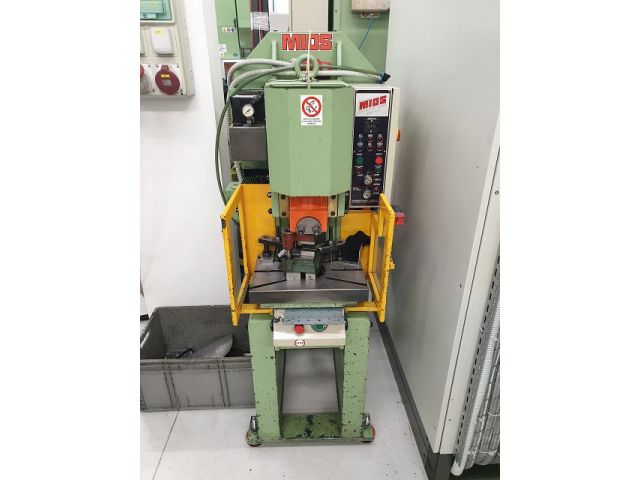

MIOS T10
Categories
Power Press (C-frame)
Object
42358
Brand
MIOS
Model
T10
YOM
2000
Object
42358
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: C-frame, double sided, inclinable | ||
| number of suspensions: | 1 | |
| Press forces | ||
|---|---|---|
| total force (nominal): | 10 | to |
| nominal work capacity: | 100 | kNm |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 420 | mm |
| table surface (front-back): | 280 | mm |
| thickness of bolster plate: | 45 | mm |
| opening in bed (diameter): | 80 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 125 | mm |
| table surface (front-back): | 100 | mm |
| stroke: | 55 | mm |
| stroke rate (max.): | 190 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 30 | mm |
| stroke adjustment: yes | ||
| stroke min.: | 5 | mm |
| stroke max.: | 55 | mm |
