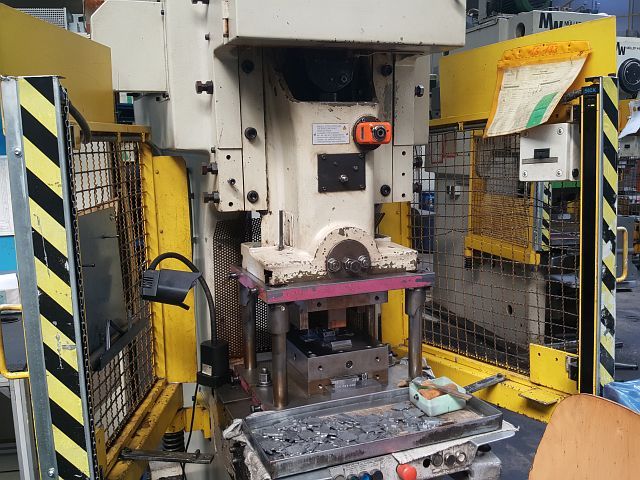

MÜLLER WEINGARTEN AP 40
Categories
Power Press (C-frame)
Object
42208
Brand
MÜLLER WEINGARTEN
Model
AP 40
YOM
2000
Object
42208
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: C-frame, double sided | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 40 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 650 | mm |
| table surface (front-back): | 480 | mm |
| opening in bed (diameter): | 200 | mm |
| Slide | ||
|---|---|---|
| slide force: | 40 | to |
| table surface (left-right): | 460 | mm |
| table surface (front-back): | 300 | mm |
| spigot hole diameter: | 40 | mm |
| stroke: | 90 | mm |
| stroke rate (max.): | 130 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 56 | mm |
| stroke adjustment: yes | ||
| stroke min.: | 8 | mm |
| stroke max.: | 90 | mm |
| variable speed: yes | ||
| stroke rate (min.): | 40 | /min |
| stroke rate (max.): | 130 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 295 | mm |
| throat (C-frame): | 280 | mm |
| distance between columns (H-frame): | 350 | mm |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 4500 | kg |
| Attachments (presses) | ||
|---|---|---|
| light barrier: yes | ||
| 2-hand engagement: yes | ||
| European CE standards: yes | ||
