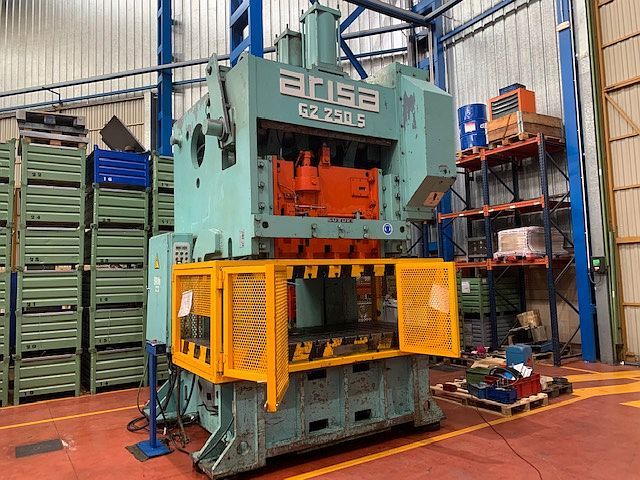

ARISA G2-250-S
Categories
Power Press (C-frame)
Object
37878
Brand
ARISA
Model
G2-250-S
YOM
1977
Object
37878
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: C-frame, double sided | ||
| number of suspensions: | 2 | |
| number of slide actions: | 1 | |
| table cushion: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 250 | to |
| nominal work capacity: | 25400 | kNm |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 2420 | mm |
| table surface (front-back): | 1090 | mm |
| thickness of bolster plate: | 150 | mm |
| Slide | ||
|---|---|---|
| slide force: | 250 | to |
| table surface (left-right): | 2100 | mm |
| table surface (front-back): | 900 | mm |
| stroke: | 200 | mm |
| stroke rate (max.): | 35 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 175 | mm |
| autom. Slide adjustment: yes | ||
| stroke adjustment: no | ||
| main drive power: | 24 | kW |
| Die Cushion (table cushion) | ||
|---|---|---|
| number of cushions: | 1 | |
| cushion force: | 16 | to |
| stroke: | 100 | mm |
| working principle: pneumatical | ||
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 425 | mm |
| throat (C-frame): | 530 | mm |
| distance between columns (H-frame): | 1500 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 380 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2555 | mm |
| space requirements -front/back-: | 2650 | mm |
| total height: | 4300 | mm |
| total weight approx.: | 30000 | kg |
| Attachments (presses) | ||
|---|---|---|
| safety guard / safety door: yes | ||
| vibration damping elements: | 4 | |
| The machine has been tested at 40 strokes/minute and highest temperature found with thermographic camera 25º C. Hydraulic overload opens at 250 Tm, tested. Machine can be inspected under running conditions. |
