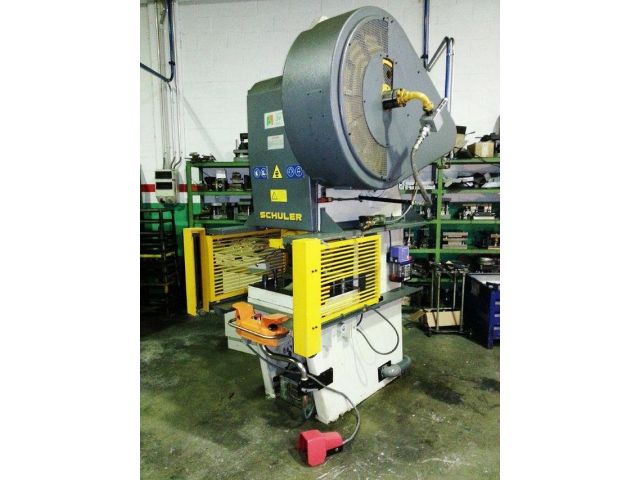

SCHULER PD 63/250
Categories
Power Press (C-frame)
Object
34389
Brand
SCHULER
Model
PD 63/250
YOM
1965
Object
34389
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 63 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 710 | mm |
| table surface (front-back): | 500 | mm |
| thickness of bolster plate: | 85 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 450 | mm |
| table surface (front-back): | 280 | mm |
| stroke: | 140 | mm |
| stroke rate (max.): | 125 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 63 | mm |
| stroke min.: | 30 | mm |
| stroke max.: | 140 | mm |
| variable speed: yes | ||
| stroke rate (max.): | 125 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 275 | mm |
| throat (C-frame): | 250 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 5 | kW |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 3500 | kg |
| Attachments (presses) | ||
|---|---|---|
| foot engagement: yes | ||
