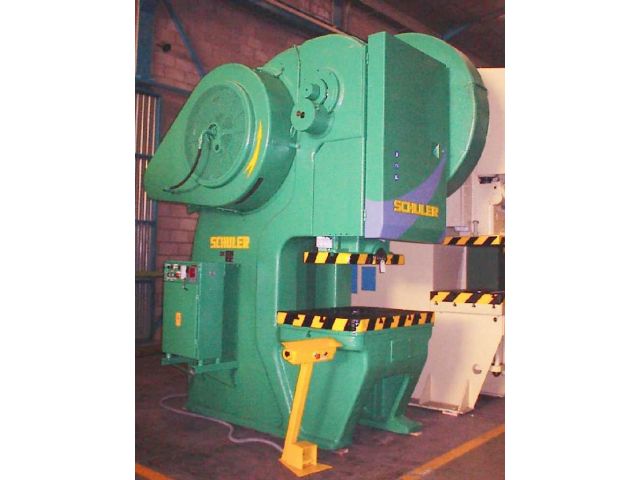

SCHULER PEDR 250/400
Categories
Power Press (C-frame)
Object
31250
Brand
SCHULER
Model
PEDR 250/400
YOM
1968
Object
31250
| Press forces | ||
|---|---|---|
| total force (nominal): | 250 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1150 | mm |
| table surface (front-back): | 850 | mm |
| Slide | ||
|---|---|---|
| stroke: | 140 | mm |
| stroke rate (max.): | 42 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| stroke adjustment: yes | ||
| stroke min.: | 30 | mm |
| stroke max.: | 140 | mm |
| variable speed: no | ||
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 650 | mm |
| throat (C-frame): | 400 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 17.5 | kW |
| mains voltage: | 380 | V |
| Dimensions / weights | ||
|---|---|---|
| total height: | 1800 | mm |
| height above floor level: | 2800 | mm |
| height under floor level: | 3500 | mm |
| total weight approx.: | 16000 | kg |
| Rebuilt in 2008 and since then stored without working in production. This machine arrived with the slide already well repaired, apparently at some point a corner was broken, and later they were working with it without any problem. In 2008 the whole machine has been dismantled and checked all its components; everything was adjusted before and after assembly; check of lubrication, check of change of courses, check of clutch, check of electrovalves and pneumatic system, motor and electrical system, parallelism of table-carriage, etc. and new paint. Leaving the machine in perfect working order. Security lock, pneumatic compensator, pneumatic clutch-brake, automatic lubrication pump. |
