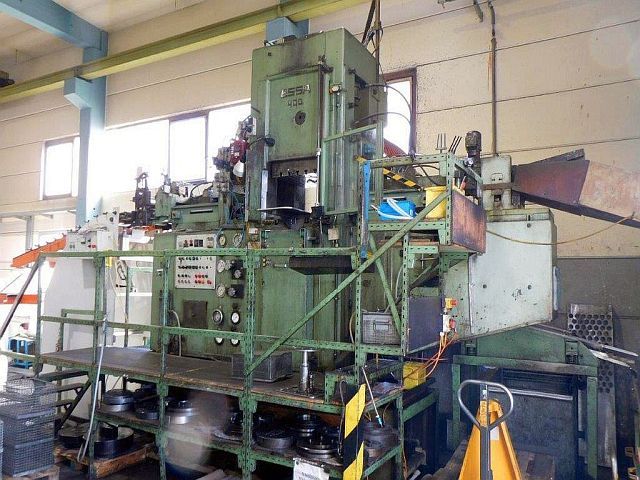

ESSA FSA 400
Categories
Fine Blanking Press -hydraulical-
Object
42743
Brand
ESSA
Model
FSA 400
YOM
1984
Object
42743
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| Slide | ||
|---|---|---|
| total force (nominal): | 400 | to |
| stroke rate (max.): | 28 | /min |
| Counter Ram | ||
|---|---|---|
| nominal force: | 80 | to |
| V-Ring | ||
|---|---|---|
| nominal force: | 170 | to |
| Strip-Feeder | ||
|---|---|---|
| feeder type: grip feeder | ||
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 55 | kW |
| Attachments -Fineblanking Press- | ||
|---|---|---|
| decoiler: optional | ||
| leveller unit: optional | ||
| Older machine in operation condition. Machine still in production. Inspection possible under power. Conventional electrics facilitate maintenance and spare parts procurement. A large set of spares will come with the press |
