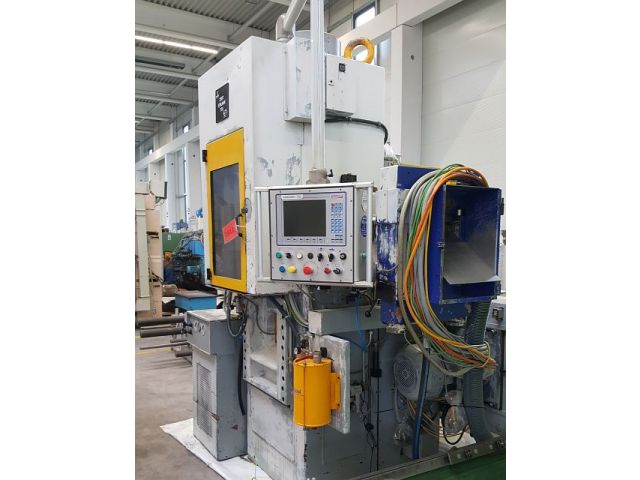

FEINTOOL GKP F 250
Categories
Fine Blanking Press -mechanical-
Object
42202
Brand
FEINTOOL
Model
GKP F 250
YOM
1974
Object
42202
| Press Design | ||
|---|---|---|
| drive system: knuckle-joint | ||
| frame design: H-frame, monoblock | ||
| feedstock transport direction: left to right | ||
| Slide | ||
|---|---|---|
| total force (nominal): | 250 | to |
| stroke: | 61 | mm |
| stroke rate (max.): | 60 | /min |
| Counter Ram | ||
|---|---|---|
| nominal force: | 75 | to |
| stroke: | 13 | mm |
| V-Ring | ||
|---|---|---|
| nominal force: | 75 | to |
| stroke: | 15 | mm |
| Tool Dimensions | ||
|---|---|---|
| lower table (left-right): | 540 | mm |
| lower table (front-back): | 540 | mm |
| upper table (left-right): | 540 | mm |
| upper table (front-back): | 540 | mm |
| shut height max.: | 320 | mm |
| ram adjustment: | 145 | mm |
| Strip-Feeder | ||
|---|---|---|
| feeder type: roll feeder | ||
| pilot release system: yes | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3610 | mm |
| space requirements -front/back-: | 2025 | mm |
| total height: | 3190 | mm |
| height above floor level: | 3190 | mm |
| total weight approx.: | 14500 | kg |
| Attachments -Fineblanking Press- | ||
|---|---|---|
| decoiler: optional | ||
| leveller unit: optional | ||
| waste cutter: yes | ||
| slug separator: yes | ||
| Combined table Electrical overhaul by FEINTOOL with PNEUTRONIC controls in 2008 |
