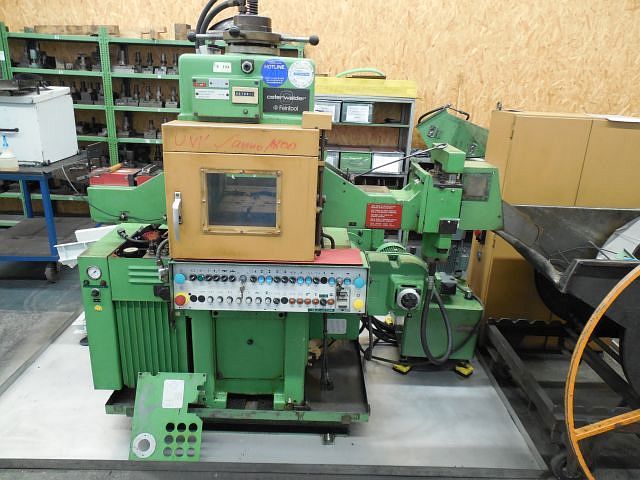

FEINTOOL GKP F 40
Categories
Fine Blanking Press
Object
32359
Brand
FEINTOOL
Model
GKP F 40
YOM
1981
Object
32359
| Slide | ||
|---|---|---|
| total force (nominal): | 40 | to |
| Tool Dimensions | ||
|---|---|---|
| lower table (left-right): | 280 | mm |
| lower table (front-back): | 280 | mm |
| upper table (left-right): | 280 | mm |
| upper table (front-back): | 280 | mm |
| Overall Specifications (coil lines) | ||
|---|---|---|
| sheet width max: | 100 | mm |
| sheet thickness max: | 4 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1800 | mm |
| space requirements -front/back-: | 1840 | mm |
| total height: | 1350 | mm |
| total weight approx.: | 2500 | kg |
