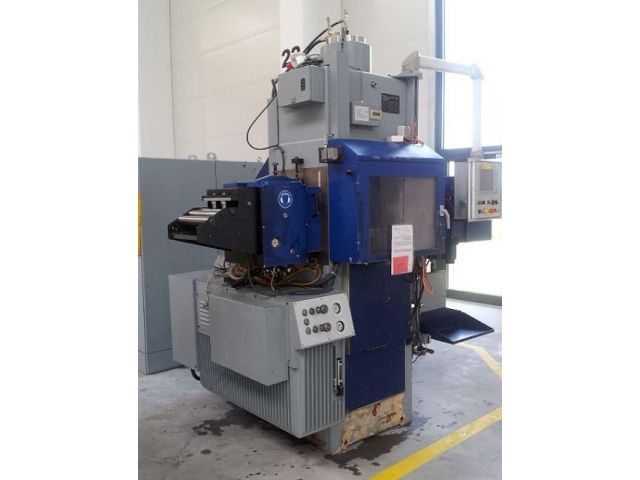

FEINTOOL GKP F 160
Categories
Fine Blanking Press -mechanical-
Object
31826
Brand
FEINTOOL
Model
GKP F 160
YOM
1988
Control name
PNEUTRONIC
Object
31826
| Slide | ||
|---|---|---|
| total force (nominal): | 160 | to |
| ram adjustment: | 80 | mm |
| stroke: | 60 | mm |
| stroke rate (min.): | 20 | /min |
| stroke rate (max.): | 70 | /min |
| main drive power: | 11 | kW |
| V-Ring | ||
|---|---|---|
| nominal force: | 40 | to |
| stroke: | 14 | mm |
| Counter Ram | ||
|---|---|---|
| nominal force: | 50 | to |
| stroke: | 10 | mm |
| Tool Dimensions | ||
|---|---|---|
| lower table (left-right): | 480 | mm |
| lower table (front-back): | 520 | mm |
| upper table (left-right): | 480 | mm |
| upper table (front-back): | 520 | mm |
| shut height max.: | 314 | mm |
| distance between columns (H-frame): | 500 | mm |
| passline opening (free passage in side columns): | 220 | mm |
| Strip-Feeder | ||
|---|---|---|
| feeder type: roll feeder | ||
| sheet width max: | 210 | mm |
| sheet thickness max: | 6 | mm |
| feeding step max.: | 999.9 | mm |
| sheet length min: | 2000 | mm |
| nominal force: | 6 | kN |
| band lubrication system: yes | ||
| band support rolls: yes | ||
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 35 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2820 | mm |
| space requirements -front/back-: | 2500 | mm |
| total height: | 2800 | mm |
| total weight approx.: | 9000 | kg |
| Attachments -Fineblanking Press- | ||
|---|---|---|
| closed cabin: yes | ||
| decoiler: optional | ||
| leveller unit: optional | ||
| waste cutter: yes | ||
| Machine completely renewed by FEINTOOL in 2004 (nameplate shows year 2004) + new PNEUTRONIC controller + servo feeders + DANFOSS frequency converter for speed variation fixed punch table Machine is dismantled |
