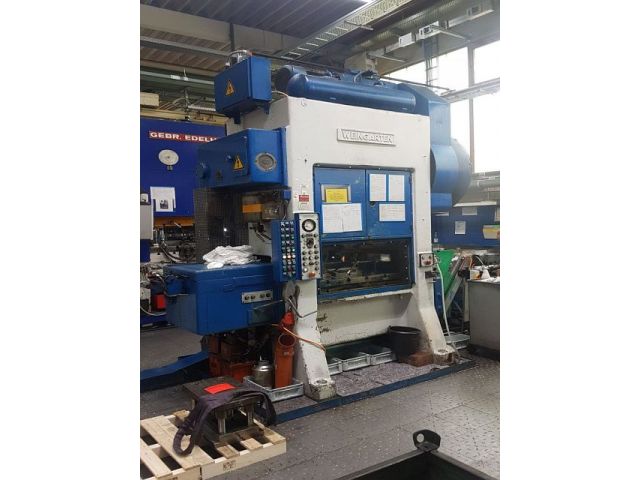

WEINGARTEN HSZ 100
Categories
Blanking Press
Object
42111
Brand
WEINGARTEN
Model
HSZ 100
YOM
1969
Object
42111
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: H-frame, monoblock | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 100 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1050 | mm |
| table surface (front-back): | 670 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 925 | mm |
| table surface (front-back): | 480 | mm |
| stroke: | 50 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 60 | mm |
| stroke adjustment: no | ||
| stroke rate (min.): | 30 | /min |
| stroke rate (max.): | 120 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 270 | mm |
| Strip-Feeder | ||
|---|---|---|
| feeder type: grip feeder | ||
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2800 | mm |
| space requirements -front/back-: | 1600 | mm |
| total height: | 3300 | mm |
| Attachments (presses) | ||
|---|---|---|
| decoiler: yes | ||
| leveller unit: yes | ||
| strip feeder: yes | ||
| feeder type: grip feeder | ||
| waste cutter: yes | ||
