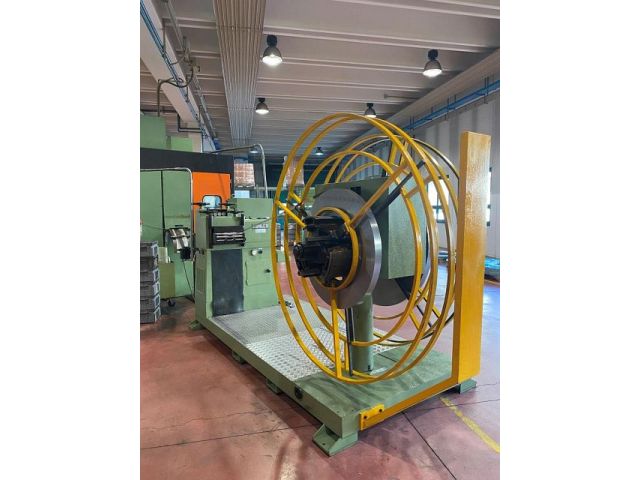

KOHLER 18.260
Categories
Coil Reel & Straightener
Object
42449
Brand
KOHLER
Model
18.260
YOM
1986
Object
42449
| Decoiler | ||
|---|---|---|
| design: twin reel | ||
| sheet width max: | 260 | mm |
| max. diameter of coil: | 2000 | mm |
| mandrel expansion range from: | 370 | mm |
| mandrel expansion range up to: | 440 | mm |
| Leveller Unit | ||
|---|---|---|
| sheet width max: | 260 | mm |
| sheet thickness max: | 3 | mm |
| sheet thickness (min): | 0.3 | mm |
| material cross section max. (450 N/mm2): | 500 | mm² |
| number of leveller rolls: | 19 | |
| feed velocity min.: | 0 | m/min |
| feed velocity max.: | 60 | m/min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 380 | V |
| mains frequency: | 50 | Hz |
| DECOILER Coil spreading hidraulic Braking pneumatic Brake version disc brake Lateral displacement manual Pivoting manual STRAIGHTENER Belt infeed left Sensing arm control Roller mill adjustment manual Metric dial gauges V-belt size 47x1500 Can be inspect in function |
