DREHER
Categories
Coil Reel & Straightener
Object
39978
Brand
DREHER
YOM
1998
Object
39978
| Decoiler | ||
|---|---|---|
| design: single reel | ||
| sheet width max: | 500 | mm |
| max. weight of coil: | 2 | to |
| max. diameter of coil: | 1400 | mm |
| mandrel expansion range from: | 445 | mm |
| mandrel expansion range up to: | 530 | mm |
| feed velocity max.: | 16 | m/min |
| Leveller Unit | ||
|---|---|---|
| sheet width max: | 500 | mm |
| sheet thickness max: | 2 | mm |
| number of leveller rolls: | 11 | |
| number of infeed-/outfeed rolls: | 4 | |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 1.1 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |

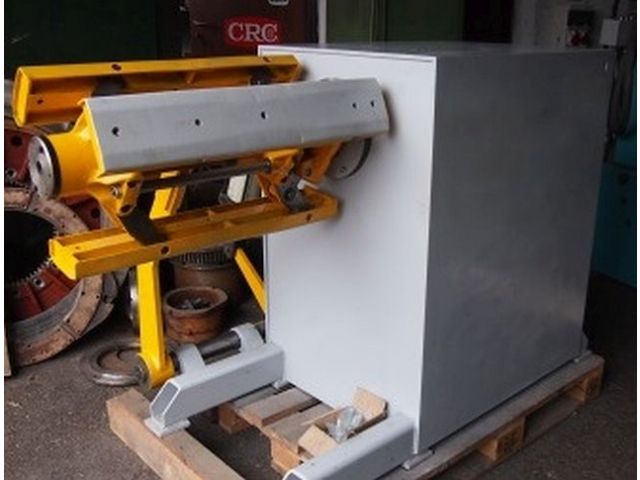

| Decoiler DREHER 2370D/MO/FPS Pneumatic clamping arm. Hydraulic mandrel expansion. Straightening machine DREHER 1676D/11FQ |
