KOHLER
Categories

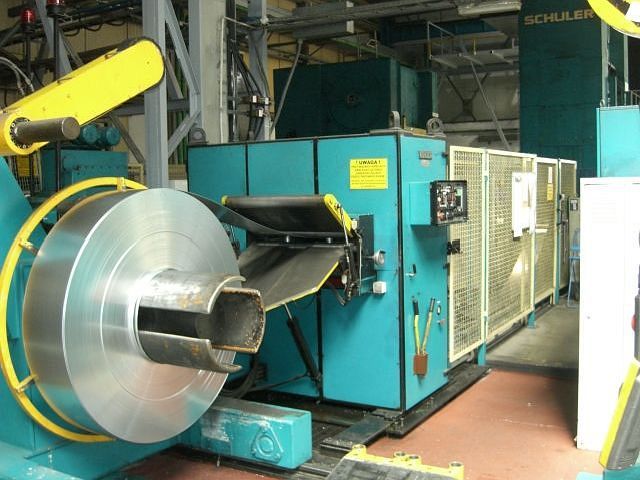

Coil Reel & Straightener
Object
30920
Brand
KOHLER
YOM
1991
Control name
SIEMENS S5
Object
30920
| Decoiler | ||
|---|---|---|
| design: single reel | ||
| sheet width max: | 800 | mm |
| max. weight of coil: | 5 | to |
| max. diameter of coil: | 1600 | mm |
| mandrel expansion range from: | 460 | mm |
| Leveller Unit | ||
|---|---|---|
| sheet width max: | 800 | mm |
| sheet thickness max: | 3 | mm |
| sheet thickness (min): | 0.4 | mm |
| material cross section max. (450 N/mm2): | 1200 | mm² |
| number of leveller rolls: | 9 | |
| diameter of leveller rolls: | 30 | mm |
| feed velocity max.: | 40 | m/min |
| loop controls: yes | ||
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 10.7 | kW |
| Decoiler with coil lifter, hydraulic available, transverse movement electromechanical, main drive/braking with hydraulic motor/disc brake, pressure roller with hydraulic motor, press arm hydraulic, expansion hydraulic, straightener KRM30.800 / 9, telescopic table hydraulic with pressure roller, belt centering manually, adjusting the straightening rolls electromechanical, main drive AC motor, hydraulic roller baskets, ultrasonic loop control |
