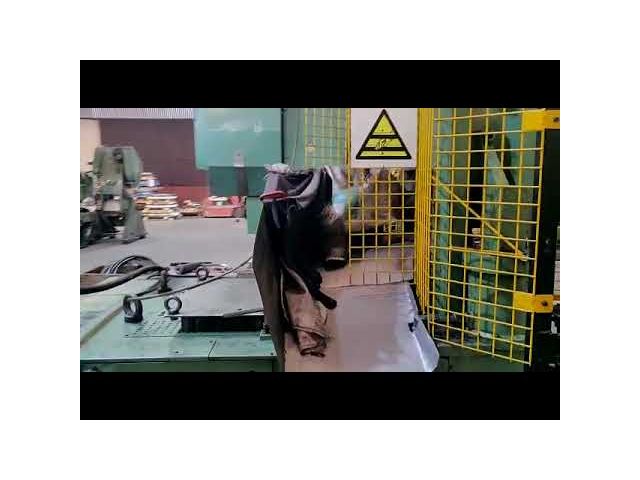

GRAEBENER GK 360
Categories
knuckle joint press (cold extrusion)
Object
41705
Brand
GRAEBENER
Model
GK 360
YOM
1977
Object
41705
| Press Design | ||
|---|---|---|
| drive system: knuckle-joint | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 360 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 440 | mm |
| opening in bed (diameter): | 105 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 525 | mm |
| table surface (front-back): | 325 | mm |
| spigot hole diameter: | 65 | mm |
| stroke: | 60 | mm |
| stroke rate (max.): | 60 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| main drive power: | 11 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 340 | mm |
| Norda feeder optional extra |
