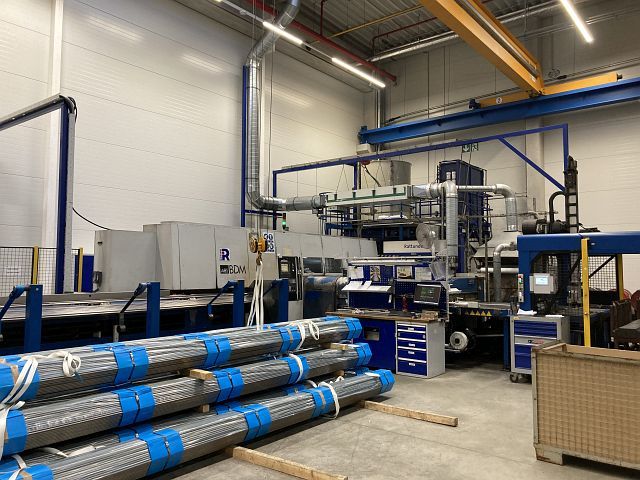

RATTUNDE ACS102/2/BM+BDM+WDM+SRT+PI
Categories
circular saw - automatic
Object
42540
Brand
RATTUNDE
Model
ACS102/2/BM+BDM+WDM+SRT+PI
YOM
2008
Control name
SIEMENS 840 D
Object
42540
| Technical Specification | ||
|---|---|---|
| cutting capacity round: | 102 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 125 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 14226 | mm |
| space requirements -front/back-: | 8325 | mm |
| total height: | 2700 | mm |
| total weight approx.: | 23765 | kg |
| 44'800 operation hours (24.Jan.2022) Material parameters: - Round tube Ø 10- 102mm (starting from wall thickness 0.8mm) - Solid material Ø 10-102mm (depending on weight) - Starting material 3000 - 6500mm capacity: - up to 2500 pcs/h in single cut - up to 10`000 pcs/h 4-fold cut Accuracy: - ± 0.15mm Sequence: - Material is placed in bundle magazine (BM) - Separation of the material - First cut is sawn and goes into the chip conveyor (ACS) - Material is clamped and cut - Pipe or shaft is transported away with 3axis CNC handling on the left or right side - workpiece is deburred with brush deburring machine (BDM) - 100% longitudinal measurement can be made and statistically recorded - Washing machine and dryer (WDM) - placed in suitable stacking containers |
