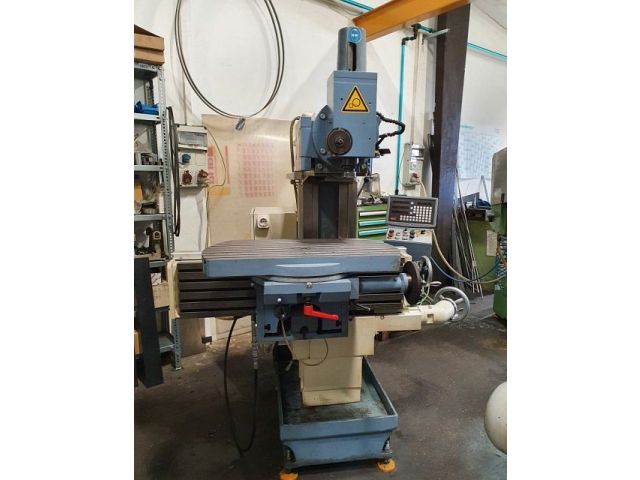

MAHO MH 600
Categories
Tool Milling Machine
Object
42621
Brand
MAHO
Model
MH 600
YOM
1977
Object
42621
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 500 | mm |
| Y-axis travel: | 400 | mm |
| Z-axis travel: | 400 | mm |
| W-axis travel: | 60 | mm |
| Table | ||
|---|---|---|
| table surface (front-back): | 410 | mm |
| clamping surface diameter: | 720 | mm |
| - mode of operation: manual | ||
| - positioning/indexing: | 360 | ° |
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 40 | /min |
| spindle revolutions (max): | 2000 | /min |
| number of gears: | 18 | |
| tool fixture: ISO SK 40 | ||
