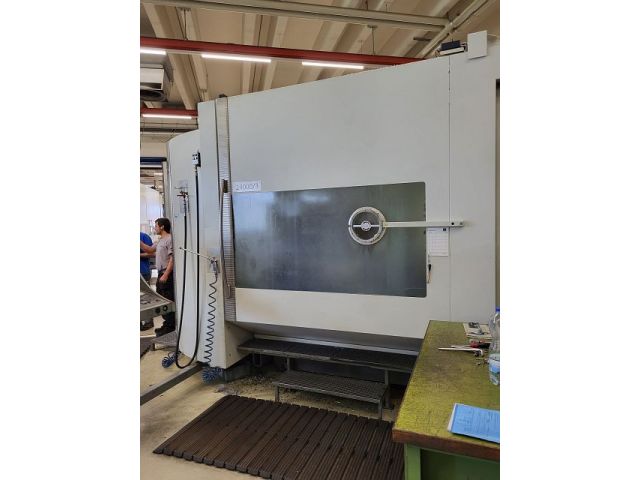

DMG DMC 125U HI-DYN
Categories
Machining Center - Horiz./Vert. (APC)
Object
42671
Brand
DMG
Model
DMC 125U HI-DYN
YOM
2002
Control name
HEIDENHAIN MILL PLUS
Object
42671
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 1250 | mm |
| Y-axis travel: | 880 | mm |
| Z-axis travel: | 800 | mm |
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 10000 | /min |
| tool fixture: HSK A100 | ||
| Tool magazine | ||
|---|---|---|
| magazin type: chain magazine | ||
| number of positions: | 180 | |
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 2 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5500 | mm |
| space requirements -front/back-: | 3200 | mm |
| total height: | 3400 | mm |
| total weight approx.: | 13000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
