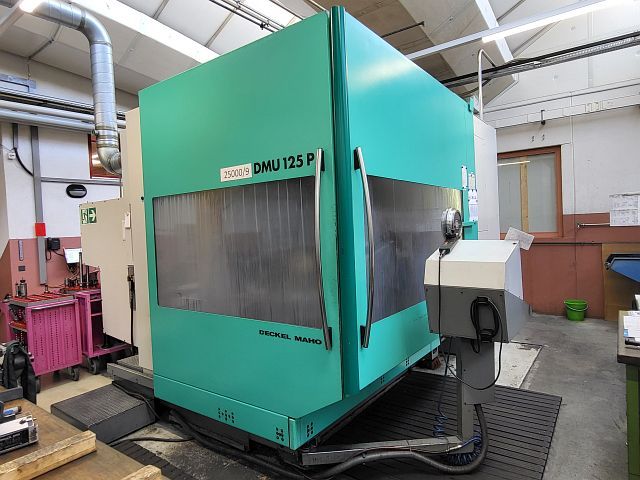

DMG DMU 125 P
Categories
Machining Center - Univ.
Object
42670
Brand
DMG
Model
DMU 125 P
YOM
1999
Control name
HEIDENHAIN MILL PLUS
Object
42670
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 1250 | mm |
| Y-axis travel: | 880 | mm |
| Z-axis travel: | 800 | mm |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 1250 | mm |
| table surface (front-back): | 1000 | mm |
| workpiece load (max): | 1000 | kg |
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 12000 | /min |
| tool fixture: ISO SK 40 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse: | 24000 | mm/min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 120 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4000 | mm |
| space requirements -front/back-: | 4600 | mm |
| total height: | 2900 | mm |
| total weight approx.: | 12500 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| closed cabin: yes | ||
