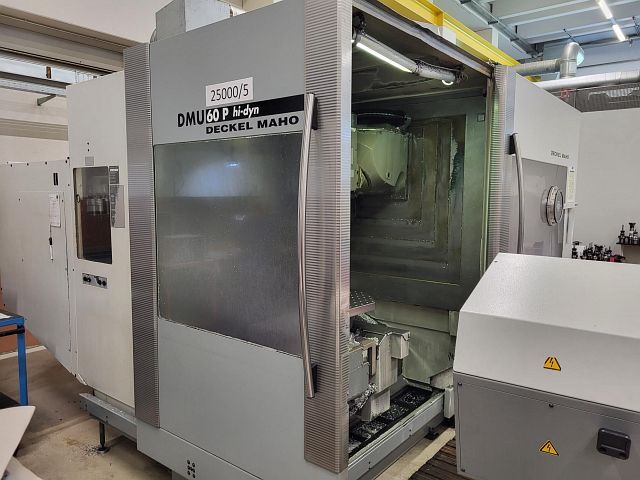

DMG DMU 60HIDYN
Categories
Machining Center - Univ.
Object
42669
Brand
DMG
Model
DMU 60HIDYN
YOM
2000
Control name
HEIDENHAIN MILL PLUS
Object
42669
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 600 | |
| X-axis travel: | 700 | mm |
| Y-axis travel: | 600 | mm |
| Table | ||
|---|---|---|
| clamping surface diameter: | 630 | mm |
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 18000 | /min |
| tool fixture: HSK A63 | ||
| Axis drives | ||
|---|---|---|
| rotation speed C-axis: | 10.7 | /min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 120 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5500 | mm |
| space requirements -front/back-: | 3600 | mm |
| total height: | 2650 | mm |
| total weight approx.: | 7500 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
