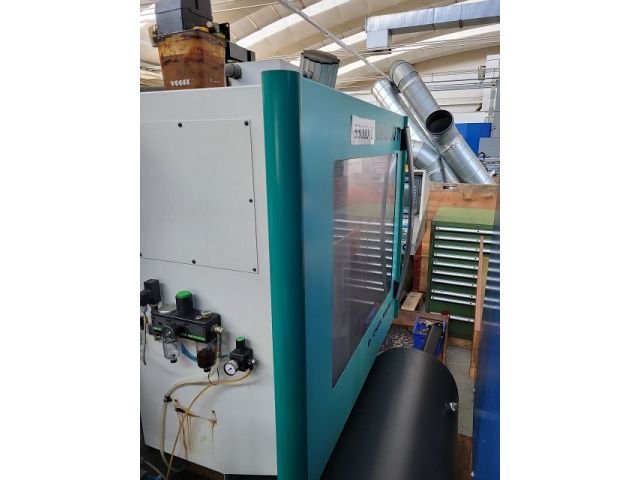

DMG DMU 50 T
Categories
Machining Center - Vert.
Object
42666
Brand
DMG
Model
DMU 50 T
YOM
1997
Control name
HEIDENHAIN MILL PLUS
Object
42666
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 500 | mm |
| Y-axis travel: | 400 | mm |
| Z-axis travel: | 400 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 700 | mm |
| table surface (front-back): | 500 | mm |
| workpiece load (max): | 200 | kg |
| - mode of operation: manual | ||
| - positioning/indexing: | 360 | ° |
| - mode of operation: manual | ||
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 9000 | /min |
| tool fixture: ISO SK 40 | ||
| Axis drives | ||
|---|---|---|
| traverse velocity X (max): | 10000 | mm/min |
| traverse velocity Y (max): | 10000 | mm/min |
| rapid traverse: | 12000 | mm/min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 16 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2100 | mm |
| space requirements -front/back-: | 1550 | mm |
| total height: | 2200 | mm |
| total weight approx.: | 3000 | kg |
