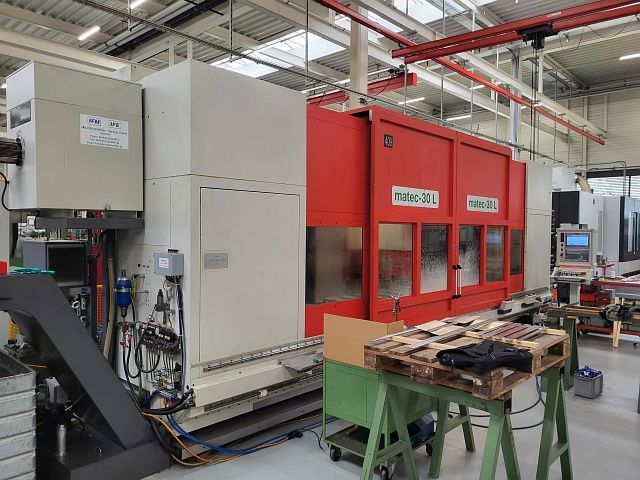

MATEC 30 L
Categories
Machining Center - Vert.
Object
42646
Brand
MATEC
Model
30 L
YOM
2001
Control name
BOSCH
Object
42646
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| X-axis travel: | 5000 | mm |
| Y-axis travel: | 800 | mm |
| Z-axis travel: | 600 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 5500 | mm |
| table surface (front-back): | 850 | mm |
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 10000 | /min |
| tool fixture: HSK A63 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse: | 30000 | mm/min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 48 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 8500 | mm |
| space requirements -front/back-: | 2800 | mm |
| total height: | 3200 | mm |
| total weight approx.: | 12000 | kg |
