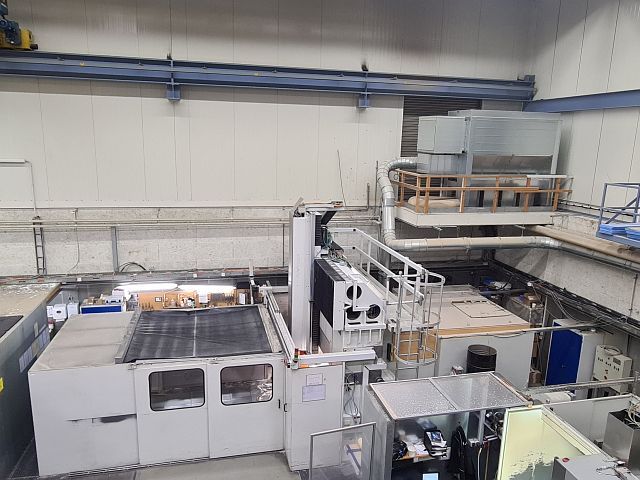

HANDTMANN NT300/220 T
Categories
Machining Center
Object
42519
Brand
HANDTMANN
Model
NT300/220 T
YOM
2001
Control name
FIDIA C20
Object
42519
| Working Range -cubic- | ||
|---|---|---|
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 4200 | mm |
| Y-axis travel: | 2750 | mm |
| Z-axis travel: | 1650 | mm |
| rotating range A-axis from: | 95 | ° |
| rotating range A-axis up to: | -120 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 3000 | mm |
| table surface (front-back): | 2200 | mm |
| milling spindle / head | ||
|---|---|---|
| spindle type: orthogonal head | ||
| spindle revolutions (max): | 24000 | /min |
| tool fixture: HSK A63 | ||
| Tool magazine | ||
|---|---|---|
| magazin type: disc magazine | ||
| number of positions: | 60 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 9500 | mm |
| space requirements -front/back-: | 5900 | mm |
| total height: | 6400 | mm |
| total weight approx.: | 40000 | kg |
| Equipment: - Radio measuring probe M&H type 25.10 (2021) - Oil mist lubrication - Fischer spindle, 24.000 rpm (grease lubricated) -2 tool magazines with 30 tool places each last repairs 19.07.21 radio measuring probe 1.400,--€ , 14.02.2020 Simodrive control module 7.900,--€ + Simodrive power module 9.400,--€ , 10.07.2018 exchange ball screw X - axis 10.07.2018 (17.200,--€) 26.02.2019 Telescope cover exchanged on one side (6.510,--€) |
