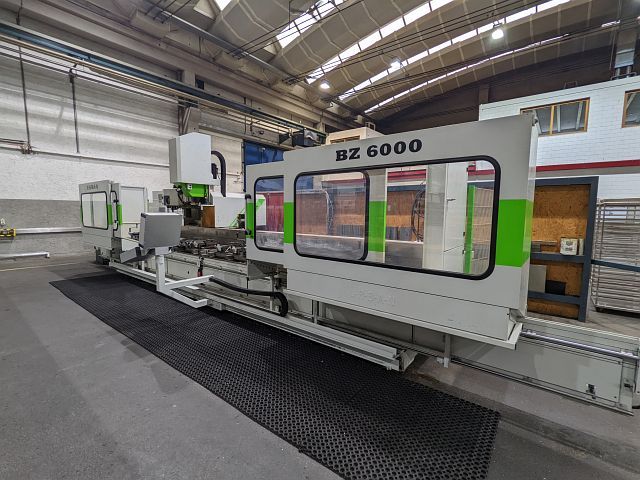

URBAN BZ 6000
Categories
Lateral Milling Machine - Vertical
Object
42633
Brand
URBAN
Model
BZ 6000
YOM
2008
Control name
HEIDENHAIN ITNC 530
Object
42633
| basic design | ||
|---|---|---|
| basic design: moving column | ||
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| X-axis travel: | 6200 | mm |
| Y-axis travel: | 550 | mm |
| Z-axis travel: | 605 | mm |
| distance spindle nose - table surface (max.): | 815 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 6200 | mm |
| table surface (front-back): | 550 | mm |
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 100 | /min |
| spindle revolutions (max): | 6000 | /min |
| tool fixture: ISO SK 40 | ||
| drive power S6 40%: | 6 | kW |
| drive power S1 100%: | 10 | kW |
| drive power: | 10 | kW |
| Axis drives | ||
|---|---|---|
| feed velocity (min): | 0 | mm/min |
| feed velocity (max): | 5000 | mm/min |
| rapid traverse X: | 40000 | mm/min |
| rapid traverse Y: | 25000 | mm/min |
| rapid traverse Z: | 25000 | mm/min |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 11000 | mm |
| space requirements -front/back-: | 4500 | mm |
| total height: | 3000 | mm |
| total weight approx.: | 11000 | kg |
| Tool magazine | ||
|---|---|---|
| magazin type: chain magazine | ||
| number of positions: | 30 | |
| tool length max.: | 130 | mm |
