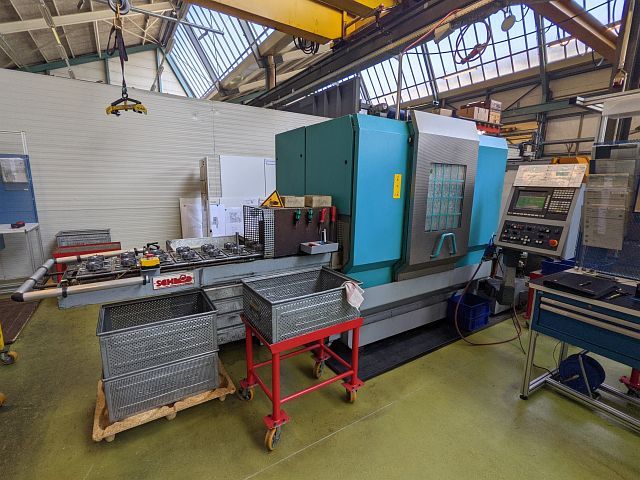

INDEX V 200
Categories
Vertical lathe CNC (pick up spindle)
Object
42333
Brand
INDEX
Model
V 200
YOM
2001
Control name
INDEX C200-4
Object
42333
| basic functions | ||
|---|---|---|
| number of spindles: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 1 | |
| number of y-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 260 | mm |
| turning diameter (max): | 200 | mm |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 200 | mm |
| X-axis travel: | 520 | mm |
| rapid traverse Z: | 30000 | mm/min |
| rapid traverse X: | 30000 | mm/min |
| Tool magazine | ||
|---|---|---|
| magazin type: disc magazine | ||
| number of positions: | 14 | |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 31 | kW |
| mains power supply: | 56 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 3300 | kg |
