RASOMA DZS 125-2
Categories
Vertical lathe CNC (pick up spindle)
Object
41914
Brand
RASOMA
Model
DZS 125-2
YOM
2018
Control name
SIEMENS 840 D SL
Object
41914
| basic functions | ||
|---|---|---|
| design principle: vertical spindle | ||
| number of spindles: | 2 | |
| number of x/z slides: | 2 | |
| number of turrets: | 2 | |
| live positions: no | ||
| number of c-axes: | 2 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 125 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 6000 | /min |
| drive power S6 40%: | 31 | kW |
| drive power S1 100%: | 25.8 | kW |
| spindle torque S1 100%: | 60 | Nm |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 300 | mm |
| X-axis travel: | 1150 | mm |
| rapid traverse Z: | 30000 | mm/min |
| rapid traverse X: | 100000 | mm/min |
| tool fixture: Turret | ||
| tool fixture- turning: DIN 69880 40 mm | ||
| number of tool positions (total): | 12 | |
| attachments (turning) | ||
|---|---|---|
| pallet changer and rotation system: yes | ||
| workpiece loading unit: yes | ||
| workpiece turning unit: yes | ||
| workpiece unloading system: yes | ||
| coolant through turret: yes | ||
| through spindle coolant attachment: yes | ||
| aspiration unit: yes | ||
| European CE standards: yes | ||

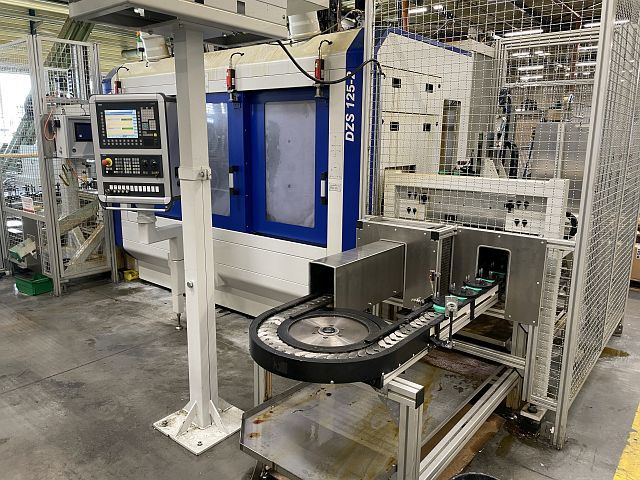

| Vertical - two spindle turning center with pick-up spindle equipped with: - Raw parts conveyor - turning station in the machine room - measuring station - Finished parts conveyor |
