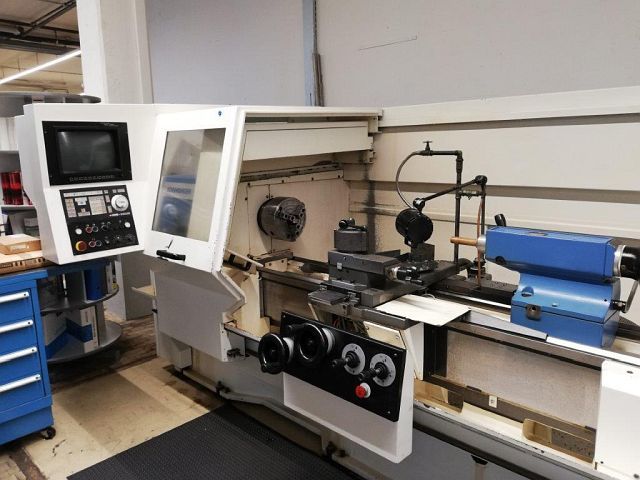

BOEHRINGER DUS 560/1000
Categories
Lathe with Teach-In Contols
Object
39705
Brand
BOEHRINGER
Model
DUS 560/1000
YOM
1997
Control name
KELLER CNCPLUS
Object
39705
| basic functions | ||
|---|---|---|
| number of x/z slides: | 1 | |
| live positions: no | ||
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 570 | mm |
| turning diameter (max): | 365 | mm |
| worpiece length max.: | 1000 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 3 | /min |
| spindle revolutions (max): | 2500 | /min |
| number of gears: | 2 | |
| spindle diameter: | 62 | mm |
| X/Z slide | ||
|---|---|---|
| traverse velocity Z (min): | 0 | mm/min |
| traverse velocity Z (max): | 10000 | mm/min |
| traverse velocity X (min): | 0 | mm/min |
| traverse velocity X (max): | 5000 | mm/min |
| tool fixture: Steel Holder | ||
| tailstock | ||
|---|---|---|
| taper: MK 5 | ||
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 35 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3400 | mm |
| space requirements -front/back-: | 1900 | mm |
| total height: | 1800 | mm |
| total weight approx.: | 4000 | kg |
| attachments (turning) | ||
|---|---|---|
| tailstock: yes | ||
