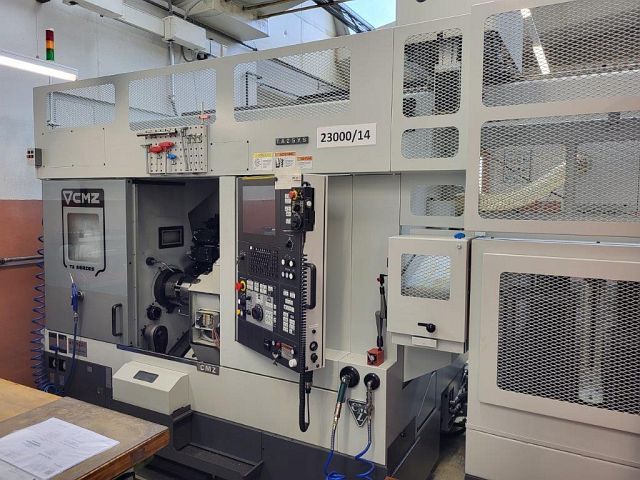

CMZ TA-25-YS-640
Categories
Turning and Milling Center
Object
42673
Brand
CMZ
Model
TA-25-YS-640
YOM
2019
Control name
FANUC 32ITB
Object
42673
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 2 | |
| number of y-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| bar diameter (max): | 66 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 4000 | /min |
| spindle bore diameter: | 66 | mm |
| c-axis: yes | ||
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 4500 | /min |
| spindle bore diameter: | 52 | mm |
| c-axis: yes | ||
| Z-axis travel: | 640 | mm |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 640 | mm |
| Y-axis travel: | 120 | mm |
| - Spindle holder A2-6 - 1x SMW 3 jaw chuck Ø210 (HS) - 1x SMW 3 jaw chuck Ø175 (SS) - TL holder 12`000rpm - Fog extraction - Gantry loader (3axis CNC Gentry loader) |
