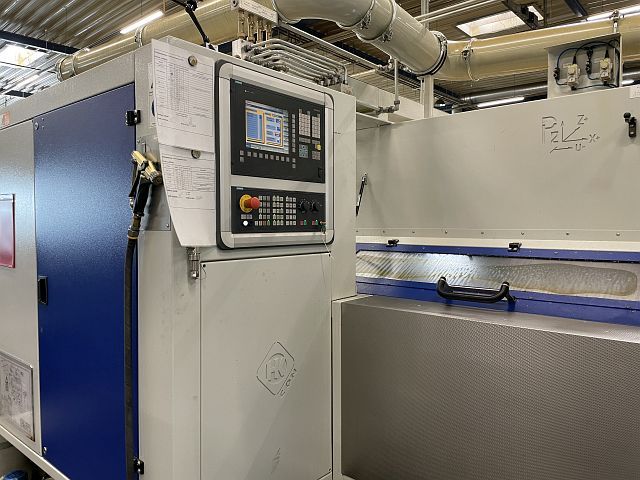

HK-CON L3²SDZ-12
Categories
CNC Transfer Turning Machine
Object
41893
Brand
HK-CON
Model
L3²SDZ-12
YOM
2018
Control name
SIEMENS 840 D SL
Object
41893
| basic functions | ||
|---|---|---|
| design principle: front bed | ||
| number of spindles: | 6 | |
| number of x/z slides: | 3 | |
| spdl. indexing device: yes | ||
| live positions: yes | ||
| number of c-axes: | 6 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 125 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 100 | kW |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 23000 | kg |
| 6-spindle transfer lathe as double spindle machine for chuck turned parts Spindle power 14.6 kW per spindle. with 3 operations and 2 direct transfers. With 2 turning spindles arranged one above the other per operation, 2 workpieces are machined simultaneously. The transfer of the parts between the 3 tool blocks is fully automated and by direct transfers without releasing the workpiece. Thus, a total of 6 spindles are always engaged at the same time. The scope includes: - Robot KUKA KR6 R900 sixx - blowing station - Measuring station - Marking laser Trumpf TruMark 5000 - infeed and outfeed belts |
