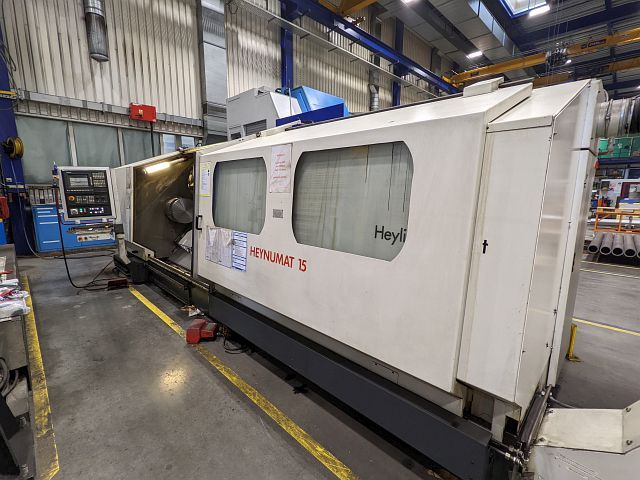

HEYLIGENSTAEDT HEYNUMAT 15 UK/2200
Categories
CNC lathe (slant bed)
Object
42634
Brand
HEYLIGENSTAEDT
Model
HEYNUMAT 15 UK/2200
YOM
1998
Control name
SIEMENS SINUMERIK 840 C
Object
42634
| basic functions | ||
|---|---|---|
| design principle: inclined bed | ||
| number of spindles: | 1 | |
| number of turrets: | 1 | |
| live positions: yes | ||
| number of c-axes: | 1 | |
| Working Range Turning | ||
|---|---|---|
| swing diameter (max): | 670 | mm |
| turning diameter (max): | 490 | mm |
| bar diameter (max): | 115 | mm |
| worpiece length max.: | 2200 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (min): | 6.3 | /min |
| spindle revolutions (max): | 3350 | /min |
| number of gears: | 2 | |
| drive power S6 40%: | 46 | kW |
| drive power S1 100%: | 40 | kW |
| spindle torque S6 40%: | 1730 | Nm |
| spindle torque S1 100%: | 1280 | Nm |
| X/Z slide | ||
|---|---|---|
| Z-axis travel: | 2318 | mm |
| X-axis travel: | 350 | mm |
| tool fixture: Turret | ||
| number of tool positions (total): | 16 | |
| number of live positions: | 8 | |
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 2200 | mm |
| sleeve stroke: | 140 | mm |
| sleeve diameter: | 125 | mm |
| taper: MK 5 | ||
| holding force (max.): | 16 | kN |
| Z-axis travel: | 2506 | mm |
| steady | ||
|---|---|---|
| diameter (max): | 240 | mm |
| attachments (turning) | ||
|---|---|---|
| tailstock: yes | ||
| steadies (number): | 1 | |
| chip conveyor: yes | ||
| European CE standards: yes | ||
