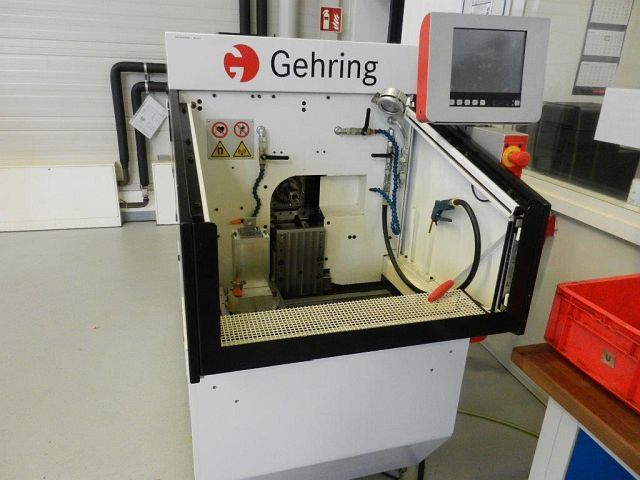

GEHRING H-200
Categories
Honing Machine - internal, horizontal
Object
39727
Brand
GEHRING
Model
H-200
YOM
2014
Control name
GEHRING
Object
39727
| working range -honing- | ||
|---|---|---|
| stroke max.: | 200 | mm |
| stroke min.: | 0 | mm |
| stroke rate (min.): | 4500 | /min |
| working range -internal honing- | ||
|---|---|---|
| diameter min.: | 0.8 | mm |
| diameter max.: | 45 | mm |
| Spindle speed from: | 0 | /min |
| .. to: | 4500 | /min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 800 | mm |
| space requirements -front/back-: | 2000 | mm |
| total height: | 1600 | mm |
| total weight approx.: | 2500 | kg |
| The machine is suitable for: - short honing - long honing - blind honing Power-on: 2973 hrs Running: 1100 hrs |
