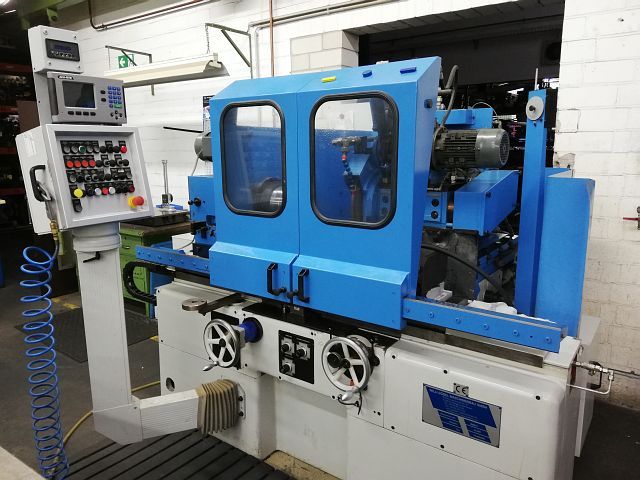

GOEBEL FH-300-500
Categories
Cylindrical Grinder - Universal
Object
40557
Brand
GOEBEL
Model
FH-300-500
YOM
2011
Control name
SIEMENS SIMATIC S7-300
Object
40557
| Working Range Cylindrical Grinding | ||
|---|---|---|
| swing diameter (max): | 530 | mm |
| workpiece weight between centers (max): | 200 | kg |
| workpiece weight flying (max): | 200 | kg |
| Working Range External Grinding | ||
|---|---|---|
| grinding diameter (max): | 530 | mm |
| grinding length: | 500 | mm |
| Table -cylindrical grinding- | ||
|---|---|---|
| tilting range (B-direction) min: | -6 | ° |
| rotating range B-axis up to: | 10 | ° |
| longitudinal traverse velocity (min): | 100 | mm/min |
| longitudinal traverse velocity (max): | 4000 | mm/min |
| Workpiece Spindlestock | ||
|---|---|---|
| spindle revolutions (min): | 0 | /min |
| spindle revolutions (max): | 250 | /min |
| tool fixture: MK 5 | ||
| Spindlestock Grinding Spindle | ||
|---|---|---|
| spindle revolutions (max): | 1600 | /min |
| drive power: | 5.5 | kW |
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (max): | 500 | mm |
| borehole: diameter: | 2032 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 14 | kW |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2600 | mm |
| space requirements -front/back-: | 2300 | mm |
| total height: | 2000 | mm |
| total weight approx.: | 5000 | kg |
| attachments (grinding) | ||
|---|---|---|
| internal grinding spindle: yes | ||
| self-centering chuck: | 1 | |
| coolant unit: yes | ||
| + equipped for CBN grinding wheels max. 450 x 30 x 203,2 mm + magnetic chuck dia=300 mm + coolant attachment with belt filter LIQUI UR 1020 |
