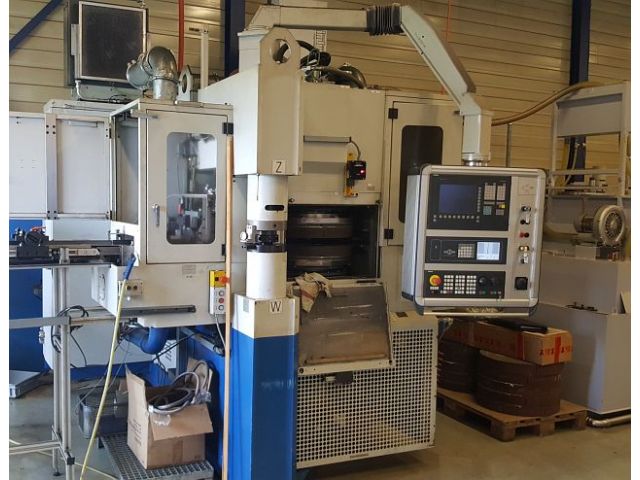

DISKUS DDS 600 XL
Categories
Double Disc Grinder, vertical
Object
36300
Brand
DISKUS
Model
DDS 600 XL
YOM
2013
Control name
SIEMENS 840 D SL
Object
36300
| working range (double disc grinder) | ||
|---|---|---|
| Grinding wheel diameter: | 600 | mm |
| grinding width max. - throughfeed grinding: | 220 | mm |
| material thickness max. - throughfeed grindin: | 70 | mm |
| Grinding Spindle 1 | ||
|---|---|---|
| spindle revolutions (max): | 1020 | /min |
| drive power: | 67.4 | kW |
| spindle torque: | 580 | Nm |
| grinding spindle 2 | ||
|---|---|---|
| spindle revolutions (max): | 1020 | /min |
| drive power: | 67.4 | kW |
| spindle torque: | 580 | Nm |
| Component-Feeder | ||
|---|---|---|
| Feeder Design: linear feeder | ||
| feeder velocity max.: | 14400 | mm/min |
| feeder velocity min.: | 1200 | mm/min |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 150 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2300 | mm |
| space requirements -front/back-: | 2850 | mm |
| total height: | 2800 | mm |
| total weight approx.: | 12000 | kg |
| Attachments: + dressing unit with impact sound sensor + tilting equipment for parallel or tilted adjustment of grinding wheels + DISKUS IONIC measuring system + position control system + infeed conveyor + component magazine + outfeed conveyor + water cooler for spindles + disc changing tool + Easy Trans software for component management + fog aspiration system Not included: - coolant attachment |
