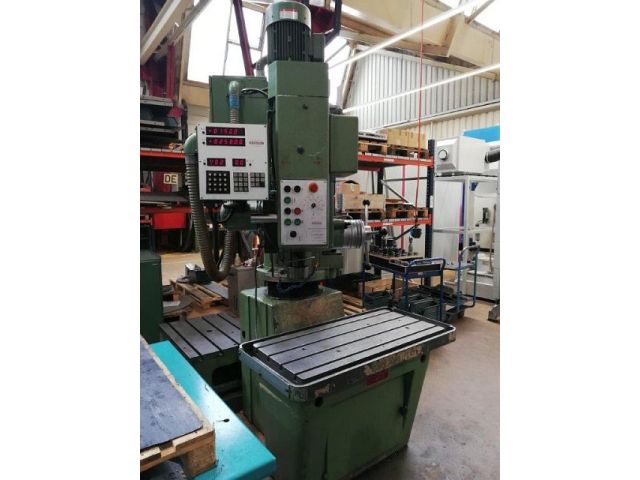

DONAU DR 40 DIGI
Categories
Rapid Radial Drilling Machine
Object
39174
Brand
DONAU
Model
DR 40 DIGI
YOM
1988
Object
39174
| Working Range -boring- | ||
|---|---|---|
| drilling capacity full bore (steel): | 40 | mm |
| throat (max): | 800 | mm |
| milling spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 335 | /min |
| spindle revolutions (max): | 1800 | /min |
| number of gears: | 2 | |
| tool fixture: MK 4 | ||
| Technical Specification | ||
|---|---|---|
| table surface (left-right): | 1000 | mm |
| table surface (front-back): | 500 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2500 | mm |
| space requirements -front/back-: | 1250 | mm |
| total height: | 2500 | mm |
