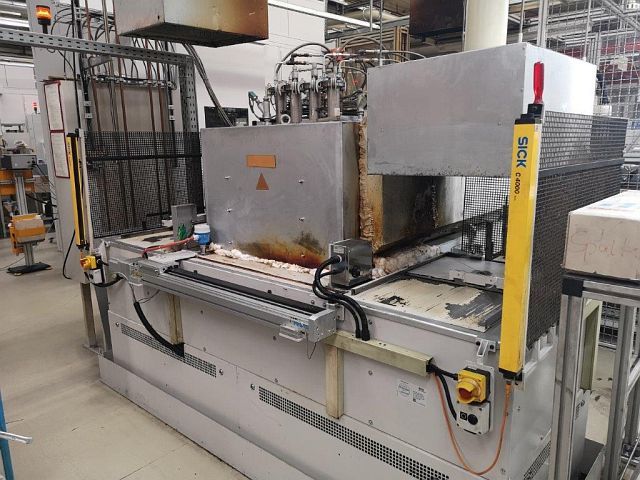

SAFED T9/35-12I
Categories
Hardening Furnace
Object
42176
Brand
SAFED
Model
T9/35-12I
YOM
2012
Control name
SIEMENS S7 300
Object
42176
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 3.59 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Plant consists of:
- metal housing
- heating elements
- Sealed muffle with gas generator injector M, injection tube, tube for gas analysis
and drive device
- Conveyor belt made of steel wire spirals
- Parts fall into oil bath tank for retracting / extending the baskets Gas distribution panel Required area: approx. 20 m² conveyor belt: - Usable width 300mm - belt length 4800mm - belt feed 6.2 - 62cm / min Heating chamber: - Width x height x length: 468 x 270 x 1280mm - useful width x height: 300 x 50mm - heating power: 29 kW - an. heating zones: 5 - max. temperature: 950 degrees - normal temperature: 800 - 930 degrees oil bath: - max. temperature: 180 degrees - oil volume: 814 liters - Heating power: 15kW |
